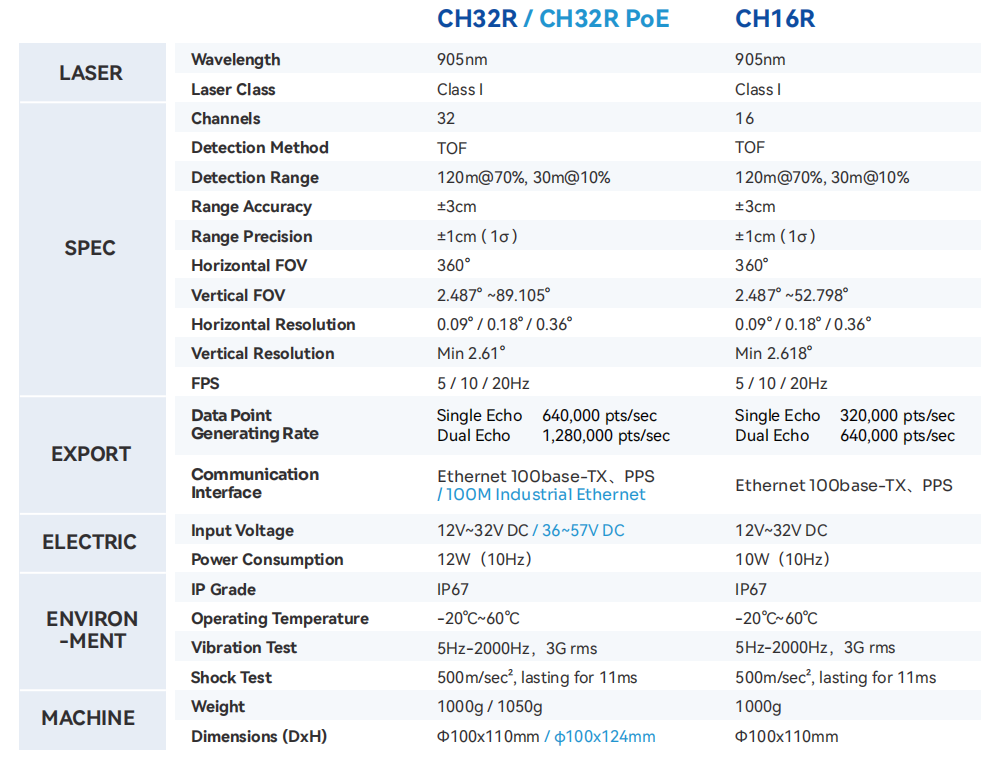

Product Description
| CH32R/CH32R PoE | CH16R | ||
| LASER | Wavelength | 905nm | 905nm |
| Laser Class | Class Ⅰ | Class Ⅰ | |
| SPEC | Channels | 32 | 16 |
| Detection Method | TOF | TOF | |
| Detection Range | 120m@70%,30m@10% | 120m@70%,30m@10% | |
| Range Accuracy | ±3cm | ±3cm | |
| Range Precision | ±1cm(1σ) | ±1cm(1σ) | |
| Horizontal FOV | 360° | 360° | |
| Vertical FOV | 2.487°~89.105° | 2.487°~52.798° | |
| Horizontal Resolution | 0.09°/0.18°/0.36° | 0.09°/0.18°/0.36° | |
| Vertica Resolution | Min 2.61° | Min 2.618° | |
| FPS | 5/10/20Hz | 5/10/20Hz | |
| EXPORT | Data Point Generating Rate |
Single Echo 640,000 pts/sec Dual Echo 1,280,000 pts/sec |
Single Echo320,000 pts/sec Dual Echo 640,000 pts/sec |
| Communication Interface |
Ethernet 100base-TX、PPS /100M Industrial Ethernet |
Ethernet 10Obase-TX、PPS | |
| ELECTRIC | Input Voltage | 12V~32V DC/36~57V DC | 12V~32VDC |
| Power Consumption | 12W(10Hz) | 10W(10Hz) | |
| IP Grade | IP67 | IP67 | |
| ENVIRON -MENT |
Operating Temperature | -20℃~60℃ | -20℃~60℃ |
| Vibration Test | 5Hz-2000Hz,3G rms | 5Hz-2000Hz,3G rms | |
| Shock Test | 500m/sec²,lasting for 11ms | 500m/sec²,lasting for 11ms | |
| MACHINE | Weight | 1000g/1050g | 1000g |
| Dimensions(D x H) | φ100x110mm/φ100x124mm | Φ100x110mm |
