Product Description

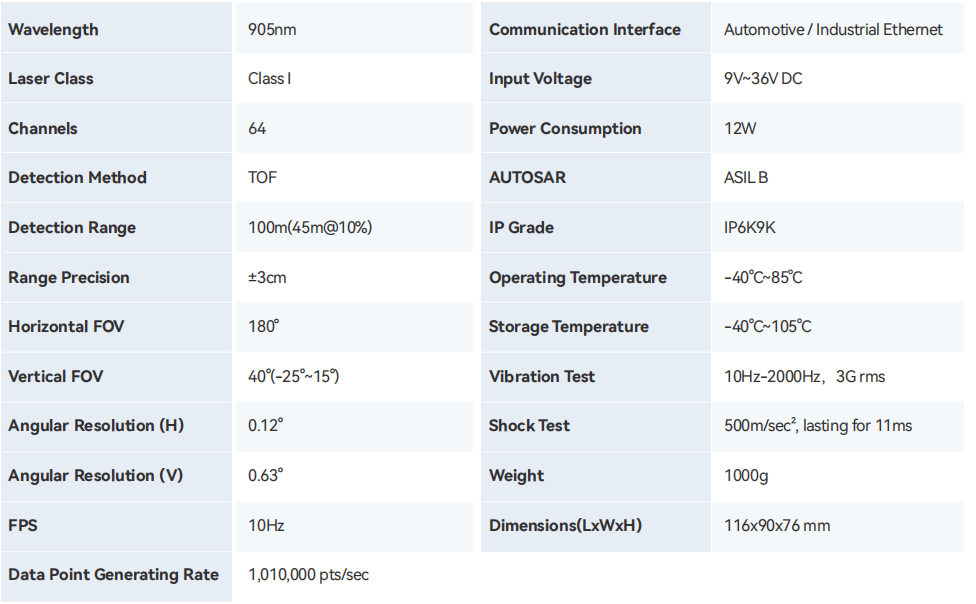

Specification
| Wavelength | 905nm | Communication Interface | Automotive/Industrial Ethemet |
| Laser Class | Classl | Input Voltage | 9V~36VDC |
| Channels | 64 | Power Consumption | 12W |
| Detection Method | TOF | AUTOSAR | ASILB |
| Detection Range | 100m(45m@10%) | IP Grade | IP6K9K |
| Range Precision | ± 3cm | Operating Temperature | -40℃~85℃ |
| Horizontal FOV | 180° | Storage Temperature | -40℃~105℃ |
| Vertical FOV | 40°(-25°~15° | Vibration Test | 10Hz-2000Hz,3Grms |
| Angular Resolution(H) | 0.12° | Shock Test | 500m/sec²,lasting for 11ms |
| Angular Resolution(V) | 0.63° | Weight | 1000g |
| FPS | 10Hz | Dimensions(LxWxH) | 116×90×76mm |
| Data Point Generating Rate | 1,010,000 pts/sec | ||
